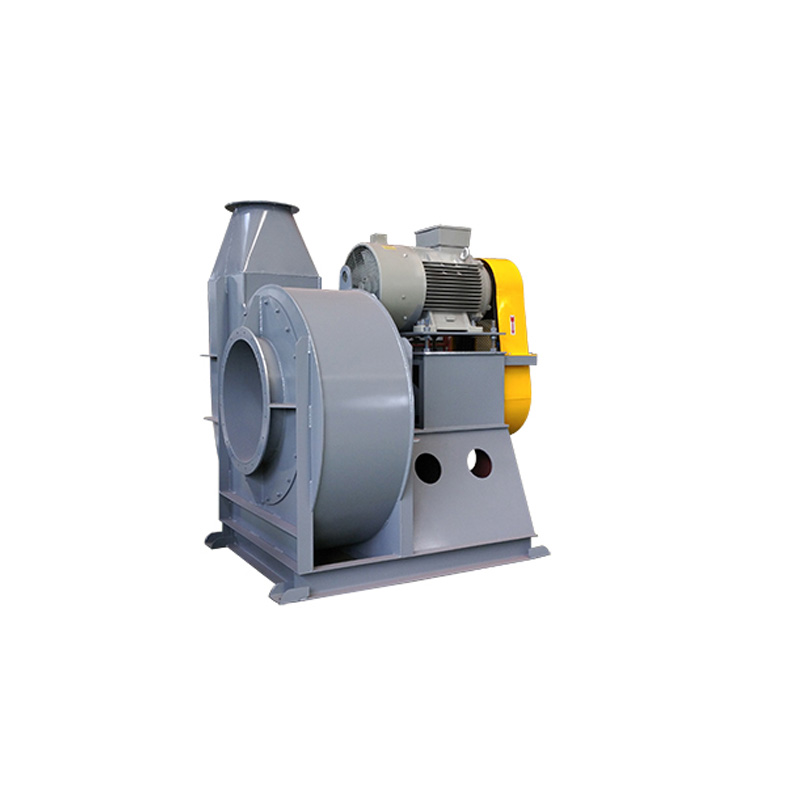

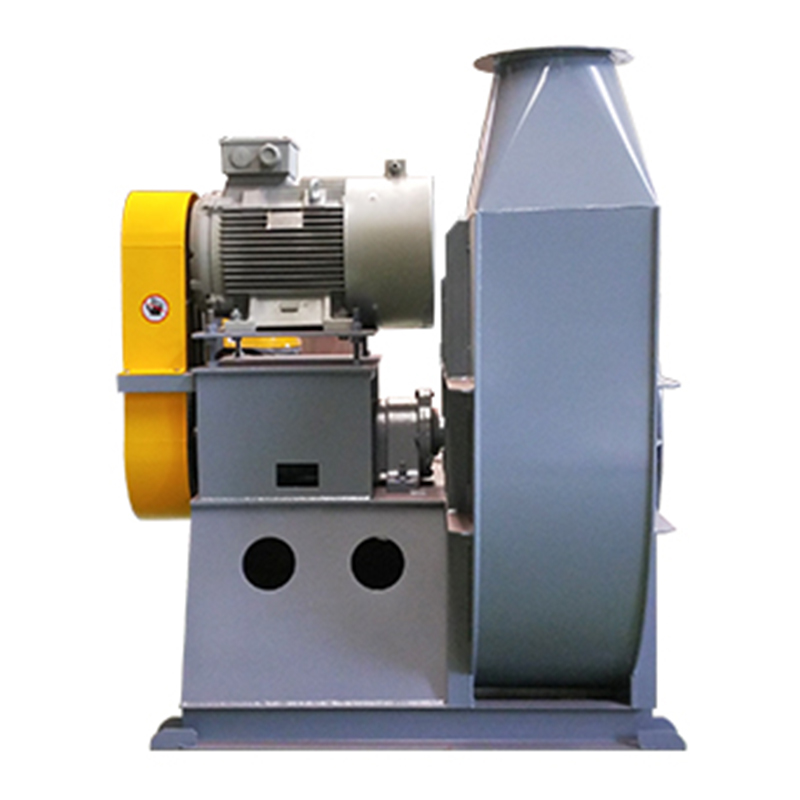

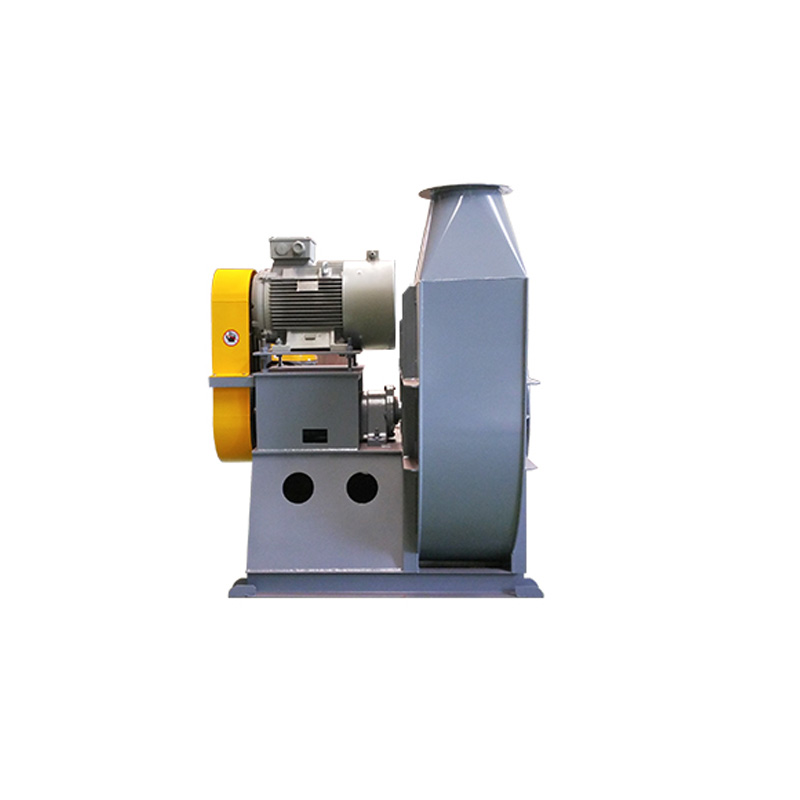

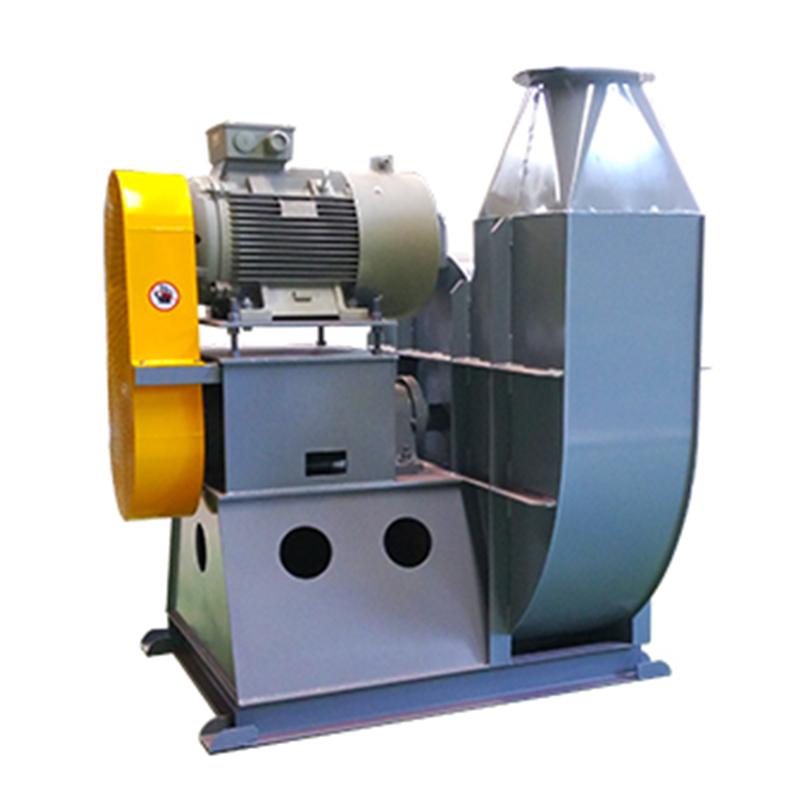

BST shredder blower is a highly efficient dust removal device designed for shredders. Its core function is to quickly discharge fine materials such as paper scraps and plastic fragments after shredding in the shredder through strong suction, avoiding cavity blockage and ensuring continuous and stable operation of the shredder. The product deeply integrates the working conditions of the shredder industry, taking into account suction, energy efficiency and durability, and is widely used in office shredders, industrial-grade document destruction equipment, confidential archive processing systems and other scenarios.
1. High-efficiency centrifugal impeller
Adopts forward multi-wing impeller + three-dimensional flow aerodynamic design, blade angle and curvature are optimized by CFD simulation, and the air volume and air pressure are well balanced; the impeller is made of aluminum alloy (or high-strength engineering plastic), which is lightweight and corrosion-resistant, and does not deform during long-term operation, ensuring stable suction.
2. Low-noise vibration reduction system
● The dynamic balance accuracy of the impeller reaches G2.5 level, reducing high-speed rotation vibration.
● Equipped with elastic shock-absorbing base (rubber/spring composite structure) to reduce equipment resonance.
● The outer shell adopts porous sound-absorbing cotton + metal guard plate composite structure, which has significant noise suppression effect.
3. Intelligent dust-proof design
● The air inlet is equipped with a removable and washable stainless steel filter (mesh size 80-120 mesh) to intercept large particles of paper scraps and prevent clogging of the impeller.
● Built-in anti-return air check valve to prevent paper scraps from flowing back when the machine is shut down.
● Add sealing strips at key gaps to reduce dust leakage.
4. Modular maintenance structure
The fan body adopts a quick-disassembly design. The filter and impeller can be disassembled by hand. Cleaning or replacement can be completed within 5 minutes, reducing operation and maintenance costs.
● Office scenarios: desktop shredders (A4/A3), small shredding workstations (such as finance rooms and archives).
● Industrial scenarios: industrial-grade shredding production lines (such as carton factory scrap processing, printing factory waste paper recycling).
● Destruction center: centralized document/ticket destruction equipment (including plastic coated paper, confidential document debris).
● Post-processing: printing factory die-cutting waste collection, carton factory shredded cardboard dust removal system.
|
Parameter |
Specification |
| Airflow | up to 294300CFM |
| Pressure | up to 81” wg |
| Temperature | up to 1660°F |
| Static efficiency | up to 80% |
| Drive | Belt and direct |
