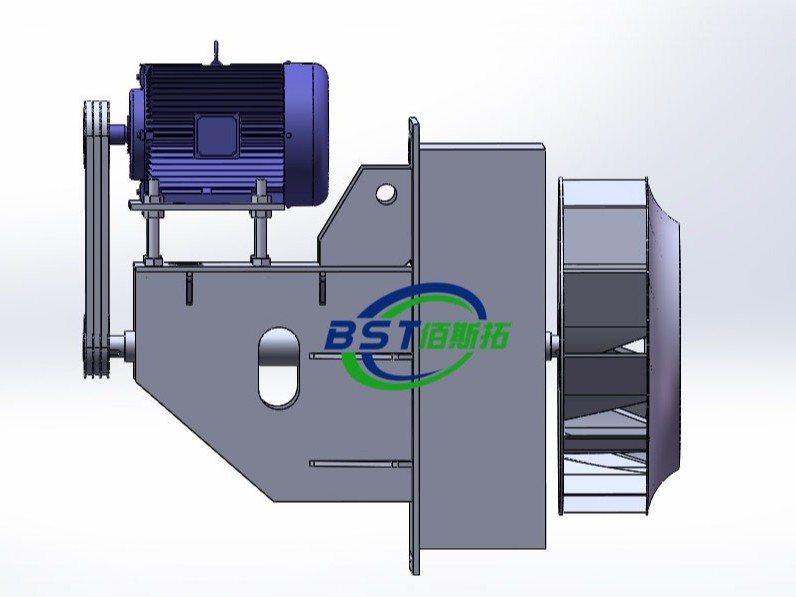

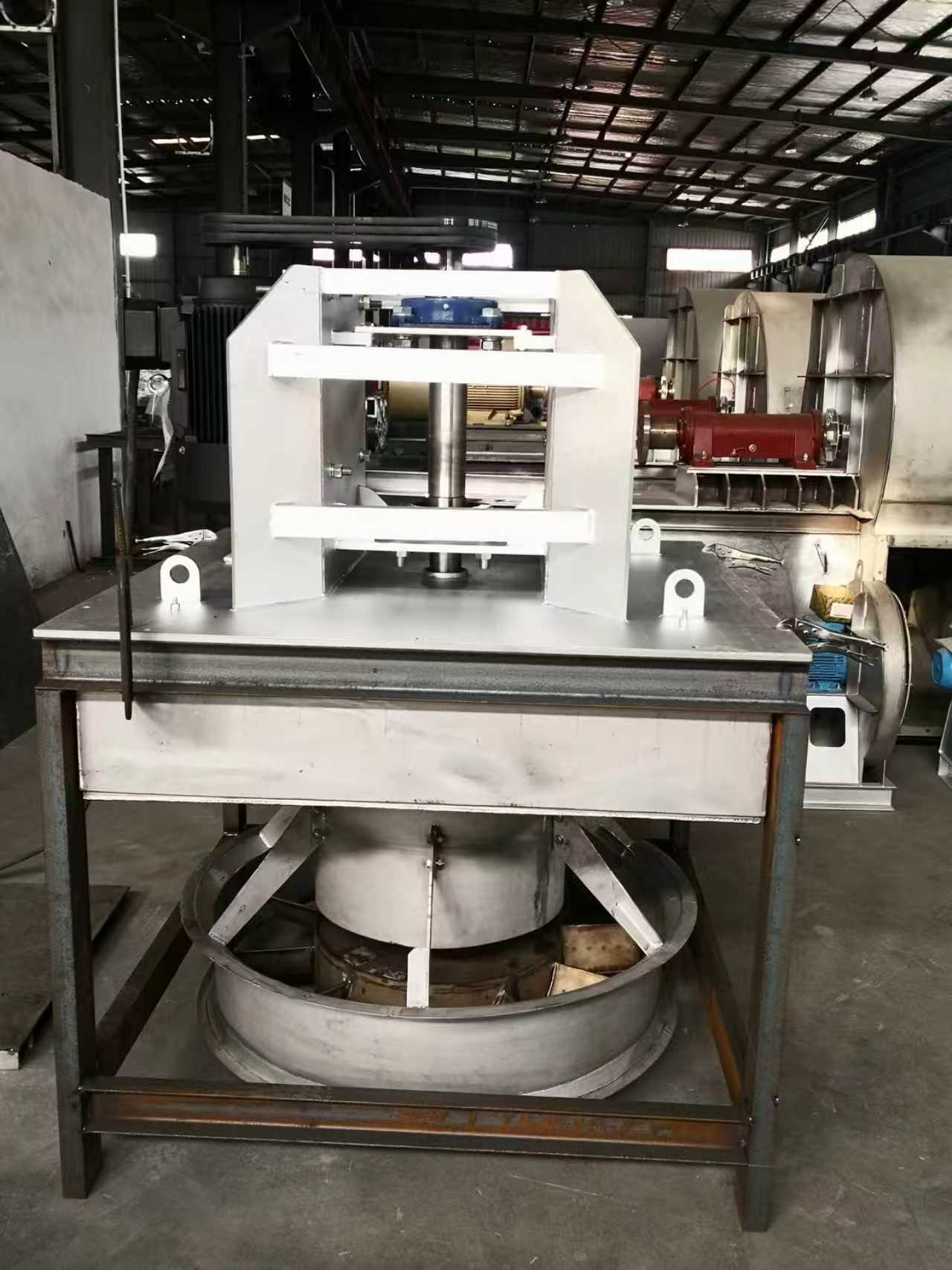

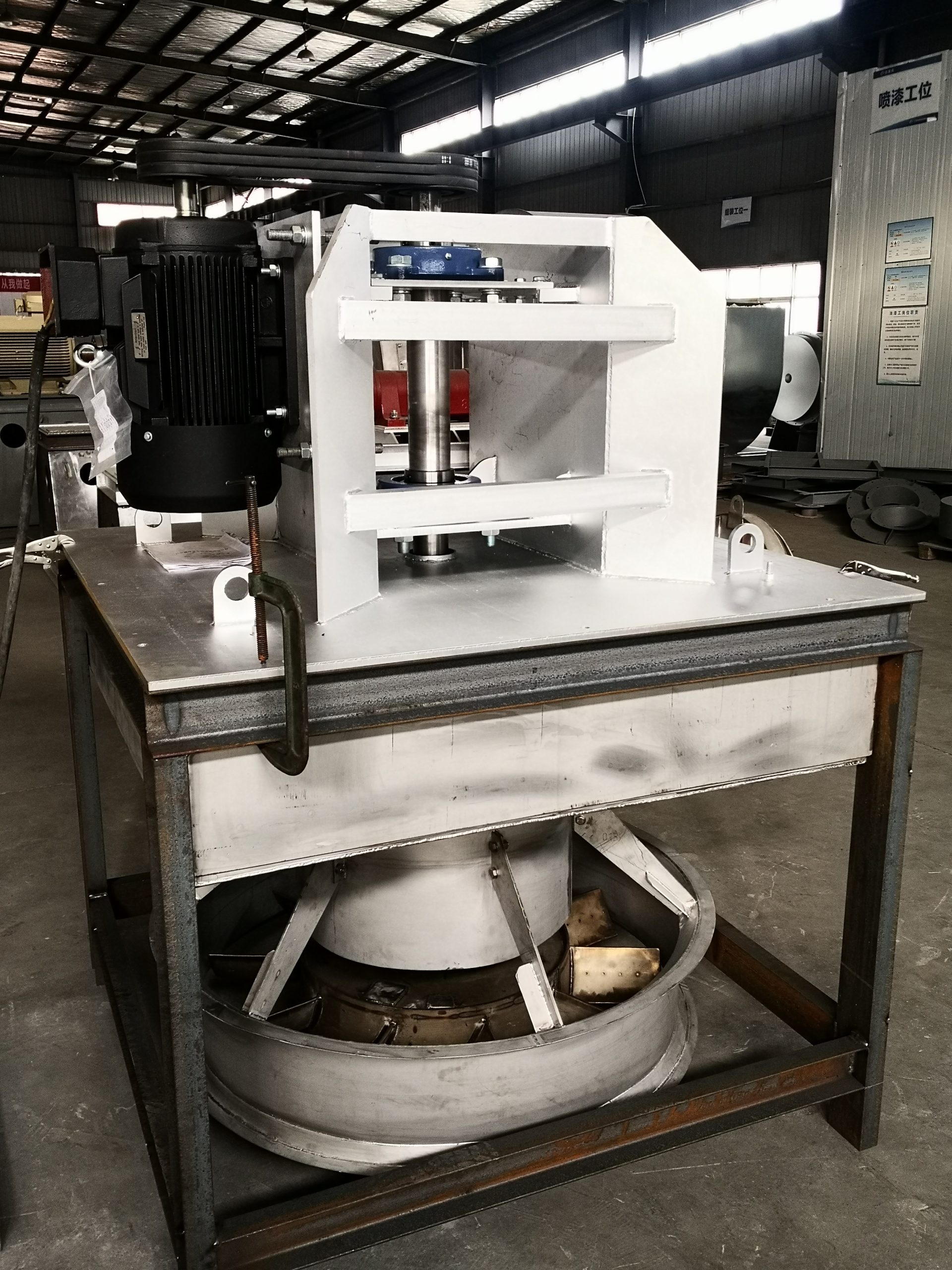

The BST plug-in high-temperature fan is an industrial fan designed for high-temperature environments. It is widely used in coating production lines, industrial furnaces (such as heat treatment furnaces, aging furnaces, continuous drying furnaces, baking furnaces, drying furnaces), textile industry, kiln industry, coating machines, etc. Its main features are high temperature resistance, explosion-proof, high efficiency and energy saving. It is suitable for conveying air or other gases that are not self-igniting, non-explosive, non-entangled, harmless to the human body, and non-corrosive to steel materials. It can also be used to convey hot air, steam, and flue gas that are non-corrosive, non-spontaneous, and do not contain sticky substances.
1. High temperature resistance: The conveying medium temperature range of the BEST plug-in high temperature fan is 200℃-1660℉℃. It is made of stainless steel and can convey medium temperatures up to 1660℉.
2. Explosion-proof design: The fan is suitable for high temperature and explosion-proof environments to ensure safe operation in dangerous situations.
3. High efficiency and energy saving: The fan design follows the design principle of fluid bionic mechanics to ensure that the fan air duct is unobstructed, the structure is thick and thin and orderly, and the energy efficiency is high, which is 20% higher than the standard fan efficiency.
4. Low noise: The factory noise value of the fan is as low as 80db, and the built-in muffler/soundproof box ensures smooth operation.
5. Long life: Use high-quality raw materials, such as raw materials from Siemens, ABB, TECO, and Datong, and bearings from SKF, KOYO, and NSK to ensure controllable quality.
6. Customized service: BEST provides one-stop technical services, including drawing design, accurate selection and customized solutions, to ensure that the finished product is accurate to the working conditions and runs more smoothly
|
Parameter |
Specification |
| Airflow | up to 294300CFM |
| Pressure | up to 81” wg |
| Temperature | up to 1660°F |
| Static efficiency | up to 80% |
| Drive | Belt and direct |
